ShortPoint Farm Installation Explained in Detail (SharePoint On-premise 2013 and 2016)



This article will provide you with important information and steps on how to proceed with installing ShortPoint Farm Solution on SharePoint 2013 and SharePoint 2016 On-Premise environments.


TABLE OF CONTENTS


This article is for you if



Before You Begin

What are the required permissions?

  • To proceed with the installation, you must be a farm administrator, a member of the local server Administrators group, and have the db_owner role for the SharePoint configuration database.
  • To automatically activate site collection features during installation (optional), you must also be a SharePoint site collection administrator.
  • If you are not a Site Collection Administrator for all site collections in a web application, then you should choose to not automatically activate the solution during the installation. Site Collection Administrators can activate the solution when they are ready to use it in their web application and then in their Site Collection.
  • For better performance, deactivate the Minimal Download Strategy feature from Site Settings - Manage site features (under Site Actions).

SharePoint Administration Service Verification


To successfully install ShortPoint, you have to make sure that the SharePoint Administration Service is running. Take note of the steps below to learn how you can check if it is running.


Use your Windows search bar to look for Services. Then, click it.

Services


On the Services page, look for SharePoint Administration. Make sure that the status is Running

SharePoint Administration


Once you see that it is running, you can now proceed to the next section of this guide. Otherwise, click the Start / Restart the service button.

Start / Restart the service



Location of Installation


This section discusses some of the things you need to take note of when it comes to ShortPoint’s location of installation.


ShortPoint must be installed on a farm server running the Central Administration service. To check, use your Windows search bar to look for SharePoint Central Administration.


  • For SharePoint 2013, search for SharePoint 2013 Central Administration.
  • For SharePoint 2016, search for SharePoint 2016 Central Administration.

SharePoint Central Administration


Select System Settings from the side panel.

System Settings


Under Servers, click Manage Servers in this farm

Manage Servers in this farm


This will show you a list of farm servers running the Central Administration service. Make sure to install ShortPoint on the correct server.
Servers in Farm


NOTE: During the installation process, ShortPoint will be automatically deployed to all front-end Web servers by the SharePoint Time service via SharePoint Solution Deployment. There is no need to run the Setup/Installation program on more than one server on the farm.

Download the ShortPoint File

This section will walk you through how to download the latest version of ShortPoint for SharePoint 2013 / 2016. Check the steps below to get started.


To download the ShortPoint file, you must first submit a trial request. To do so, go to https://www.shortpoint.com/ and select Download at the top right corner.

Download button


Scroll down and choose your product.

  • For SharePoint 2013 users, click SharePoint 2013.
  • For SharePoint 2016 users, click SharePoint 2016.

ShortPoint products

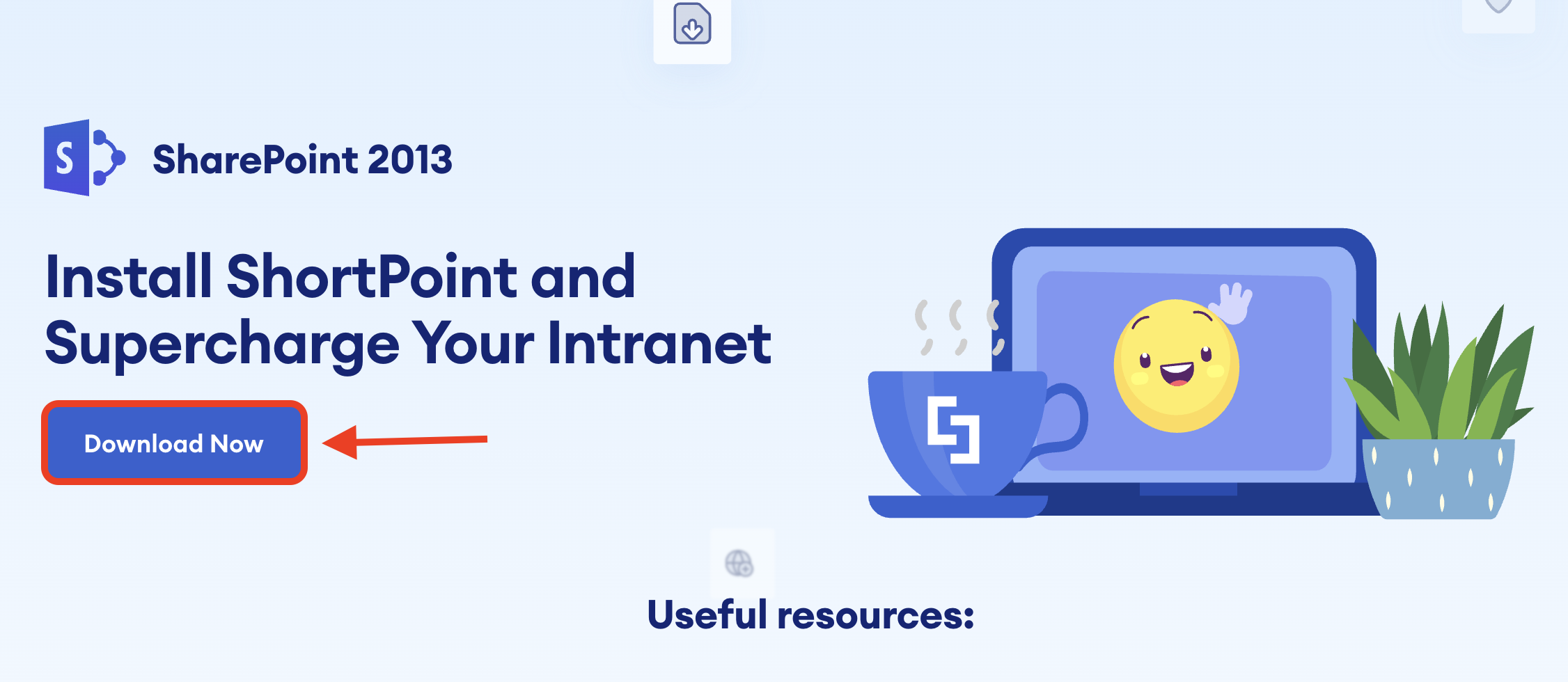

Click the Download button.

Download button



Select if you are a new or an existing customer.
New or Existing customer selection

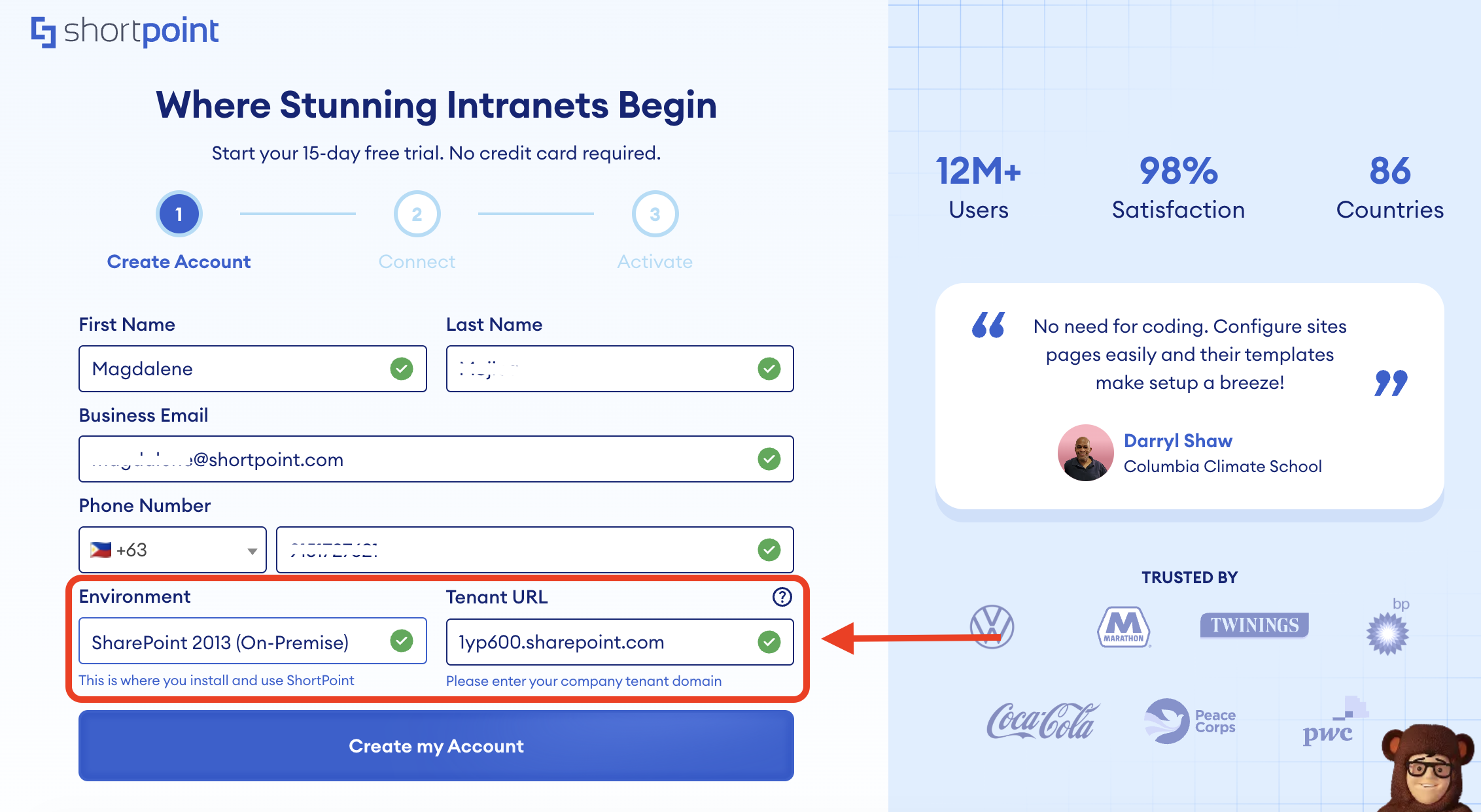

Fill in the trial request form.
Trial Request Form


From the Environment drop-down, select your SharePoint environment.


  • For SharePoint 2013 users, select SharePoint 2013 (On-Premise).
  • For SharePoint 2016 users, select SharePoint 2016 (On-Premise).

Environment drop-down


Let us know if you are interested in Professional Services for your intranet. Then, click Next.

Professional Services option


Every new trial comes with a 60-minute walkthrough demo session with one of our experts. If you would like to have it, select a date.

Date selection


And a time slot.  Otherwise, you can click Skip this Step.

Time slot selection


After selecting the date and time of the walkthrough, click Confirm.

Confirm button


You can also indicate the emails of your colleagues to invite them to the walkthrough and leave comments if you have any special requests. Then, click Schedule Event.

Schedule Event button


You will then be redirected to the Success page where you can download ShortPoint.


  • For SharePoint 2013 users, click Download ShortPoint for SharePoint 2013.
  • For SharePoint 2016 users, click Download ShortPoint for SharePoint 2016.

Download button



Extract the ShortPoint File

This section discusses how to extract the ShortPoint file you downloaded earlier. Take note of the steps below to successfully extract your ShortPoint file.


If you are using the Chrome browser,  you will see a ZIP archive at the bottom of your screen after clicking the download button. If you are using another browser, look for the file in your downloads.


ShortPoint Foundation.zip File


On your Downloads folder, locate the ShortPoint.Foundation file.

ShortPoint file in downloads


Right-click on the file and select Extract all

Extract All button


A pop-up window will appear. Click Browse to choose the location of the extracted file. Make sure that the file is extracted to your SharePoint server.

Browse button


After choosing the file location, click Extract

Extract button


To check if the file has been extracted properly, go to the folder where you extracted the file and look for the following:

  • readme.txt
  • Resources
  • Setup2013.exe or Setup2016.exe
  • Setup2013.exe.config or Setup2016.exe.config
  • ShortPoint_Setup_Guide_SharePoint_2013/2016.pdf
  • ShortPoint.Foundation.wsp

Zip files




Begin with the Installation

This section will walk you through how to install ShortPoint. Follow the steps carefully for a successful installation.


Find the extracted Setup.exe file and click it.

  • For SharePoint 2013, run Setup2013.exe.
  • For SharePoint 2016, run Setup2016.exe.

Setup2013.exe


You will be redirected to the ShortPoint Foundation setup wizard. Click Next

ShortPoint Foundation setup wizard


The setup wizard will conduct a System Check. Make sure that every item has a checkmark. Then, click Next

System Check


NOTE: If you receive an error or if there are any "x" marks on the items above, make sure to check if you have fulfilled all the requirements in the Before we begin section. You may also email us at support@shortpoint.com and we will be more than happy to assist you.


Accept our End-User License Agreement. You can also view an online version at shortpoint.com/eula for reference. Click Next.


accept ShortPoint EULA


Choose the Web Application where you want ShortPoint to be activated. Make sure to tick the Central Administration site. It is required to manage the ShortPoint Configuration features. Click Next

Central administration site


Note: Alternately, you have the option to skip this step to activate it manually later


The installation might take a few minutes. Once done, click Next.

Installation loading


Congratulations, You are done! ShortPoint is now installed and you are ready to start designing amazing SharePoint pages. Click Close.

installation successful



Post-check after Installation


This section will show you two ways to check if you have successfully installed ShortPoint. One is through SharePoint Central Administration and the other is through Site Settings.


Option 1: SharePoint Central Administration

Use the Windows search box to look for and open the SharePoint Central Administration


  • For SharePoint 2013, search for SharePoint 2013 Central Administration.
  • For SharePoint 2016, search for SharePoint 2016 Central Administration.

SharePoint Central Administration


Once there, click License Management under the ShortPoint section.

License Management


Note: If the ShortPoint License Management is missing, you must deploy the ShortPoint Farm Solution to the Central Administration Web Application as noted in the installation steps above.


If the status is Active, it means that you have successfully installed ShortPoint.

Active License



Option 2: Site Settings


Open the site where you wish to use ShortPoint. Click the cogwheel button in the upper right corner.

Cogwheel button



From the dropdown, click Site Settings

site settings button



Under ShortPoint, click ShortPoint Dashboard.

ShortPoint Dashboard button



The ShortPoint Dashboard will show you the status of your ShortPoint license.

ShortPoint Dashboard


There you have it! You can now use ShortPoint to create beautiful Intranet sites.
