How to Adjust the Size of the Hub Navigation Logo

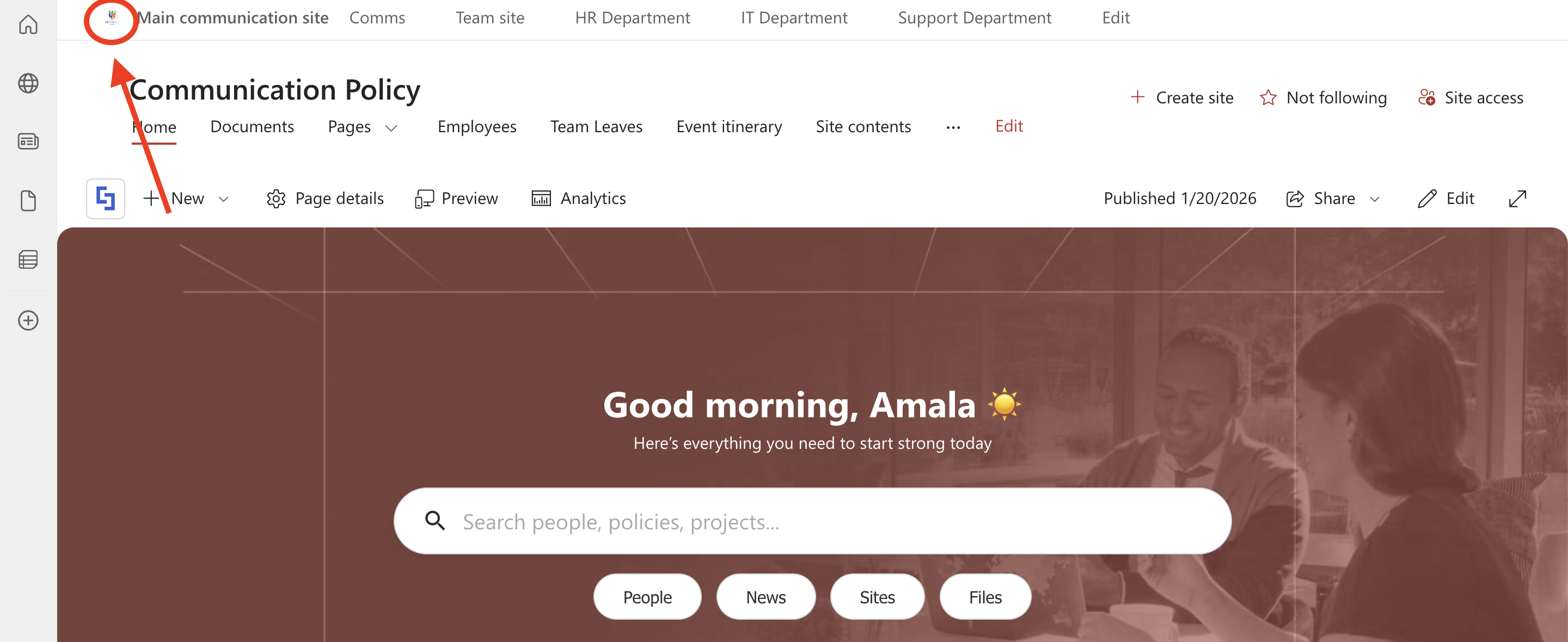

By default, SharePoint doesn’t have the option to adjust the size of the logo in your Hub navigation, making it unnoticeable:

This article will demonstrate how to increase the logo size using ShortPoint Theme Builder:

TABLE OF CONTENTS

• Prerequisites
• Interactive Tutorial
• Step-by-step Tutorial
  • Step 1: Open the ShortPoint Theme Builder
  • Step 2: Copy Code
  • Step 3: Paste Code

Prerequisites

• You must have the latest version of ShortPoint SPFx installed in your SharePoint environment.
• You must already have a logo in your SharePoint Hub navigation.
• To add Custom CSS in Theme Builder, you must be a ShortPoint Designer with either a Pro or Enterprise License. For more details, check out Licensing Options.

Interactive Tutorial

Before starting the tutorial, copy the code below:

/* Increase Hub Logo Size */
.ms-HubNav-link img {
    max-height: 60px !important; /* Adjust height as needed */
    width: auto !important;
    height: auto !important;
    transition: all 0.3s ease;
}

/* Ensure the container expands to fit the larger logo */
.ms-HubNav-link {
    height: auto !important;
    padding-top: 5px !important;
    padding-bottom: 5px !important;
}

/* Optional: Adjust alignment if the logo looks off-center */
.ms-HubNav {
    align-items: center !important;
}

Step-by-step Tutorial

Follow the steps below for the detailed guide:

Step 1: Open the ShortPoint Theme Builder

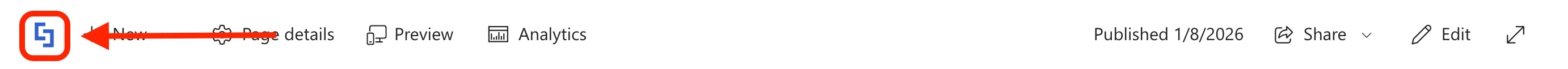

• Click the ShortPoint logo:

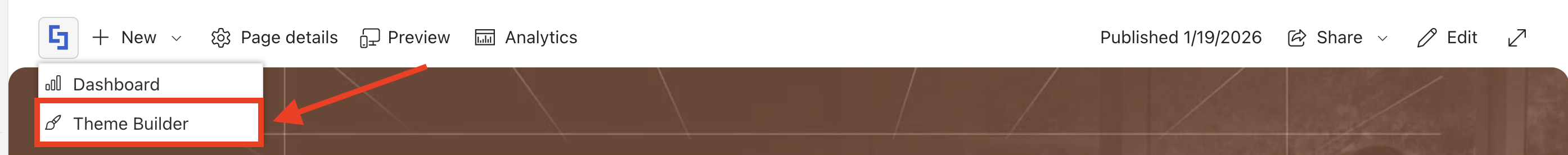

• Select Theme Builder:

Step 2: Copy Code

• Copy the Custom CSS code below:

/* Increase Hub Logo Size */
.ms-HubNav-link img {
    max-height: 60px !important; /* Adjust height as needed */
    width: auto !important;
    height: auto !important;
    transition: all 0.3s ease;
}

/* Ensure the container expands to fit the larger logo */
.ms-HubNav-link {
    height: auto !important;
    padding-top: 5px !important;
    padding-bottom: 5px !important;
}

/* Optional: Adjust alignment if the logo looks off-center */
.ms-HubNav {
    align-items: center !important;
}

Step 3: Paste Code

• Look for Utilities and select it:

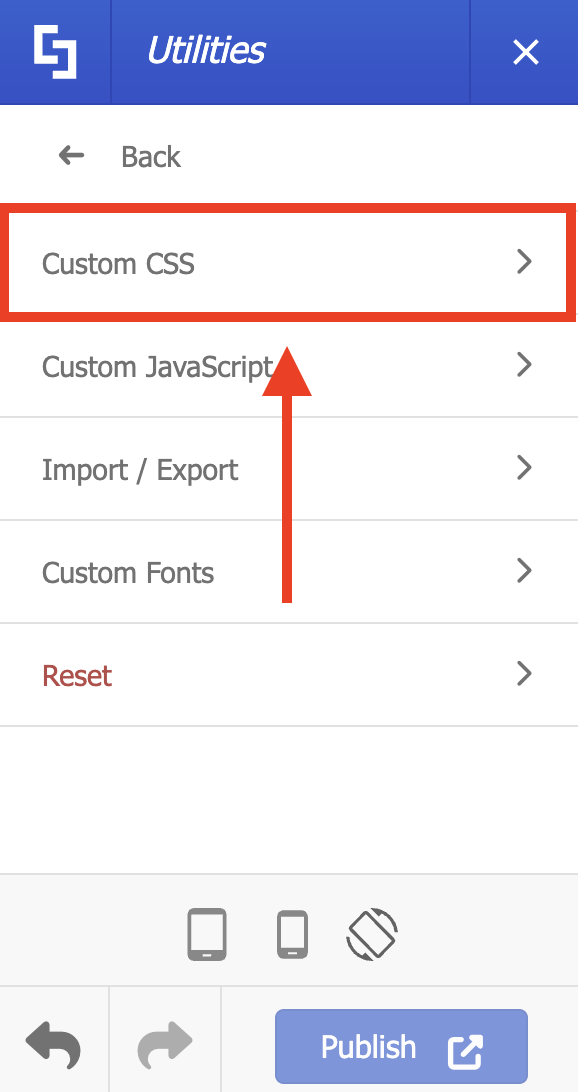

• Choose Custom CSS:

• Paste the code in the field provided.
• Customize the max-height value to your liking.

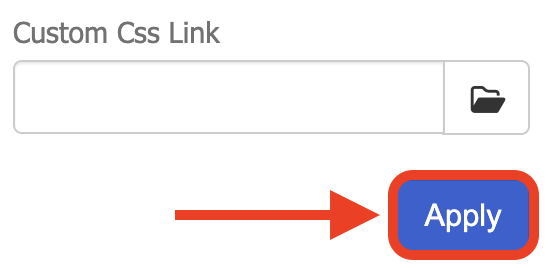

• Click Apply:

• Publish your changes.

Congratulations! You’ve successfully changed the size of the logo inside the Hub navigation.
