Try ShortPoint nowThis article will showcase the customizing options available for the Counter Boxes Design Element.
TABLE OF CONTENTS
Prerequisite
- You have the latest version of ShortPoint SPFx installed on your SharePoint environment.
- You are a ShortPoint Designer with an active license.
Interactive Tutorial
Click Get Started to learn how to customize the Counter Boxes Design Element:
NOTECheck out Counter Boxes Features to learn more about the OOTB options you can customize.
Step-by-step Tutorial
Follow the steps below for a detailed guide on how to customize the Counter Boxes Design Element:
Step 1: Edit the ShortPoint Web Part
- Go to the SharePoint page you want to use and click Edit.
- Click the ShortPoint tag.
- Select the pencil icon.
Step 2:Insert the Icon Design Element
- Click the plus icon.
- Use the search box to look for Counter Boxes and click it.
Step 3: Edit the content
- Click the cogwheel icon of the first item to edit its content.
- Edit the Counter Number.
- Add a Title.
- (Optional) Choose an Icon to display.
NOTECheck out our Icons page to see all the icons you can add to your SharePoint page.
- (Optional) Add a Link.
- (Optional) Add a Background Image.
Step 4: Customize the Counter Boxes’ design
- Navigate to the Design tab.
- Customize the look of the Counter Boxes according to your preference.
- Once satisfied, click the green check mark.
NOTECheck out Counter Boxes Features to learn more about the OOTB options you can customize.
Step 5: Save
- Then, click the eye icon to see your page in real-time.
- Click Save to apply all your changes.
Counter Boxes Features
Below are the options you can find in the Counter Boxes Settings window:
A. Items tab
The Items tab allows you to duplicate, delete, configure content, and add new items. It has the following options:
ITEMS ACTION ICONS
 | Cogwheel | opens a new window that allows you to edit the content of each item. See the table below for the cogwheel icon settings. |
 | Duplicate | duplicates the item selected. |
 | Trash | deletes the item selected. |
 | Add New | adds a new item. |
 | Drag and Drop | allows you to re-arrange the position of the item. |
COGWHEEL ICON SETTINGS
 | Counter Number | allows you to modify the number to count inside the Counter Box. |
 | Symbol | allows you to modify the symbol shown beside the number. |
 | Title | allows you to add item title. |
 | Icon | allows you to choose the Icon for each item. NOTE: Check out our Icons page to see all the icons you can add to your SharePoint page. |
 | Link | allows you to add a link where users will be redirected when they click an item. |
 | Background Image | allows you to add a background image |
B. Design tab
The Design tab allows you to customize the look of the Counter Boxes Design Element. It has the following options:
 | Theme Color | allows you to choose the color of the Counter Boxes. By default, it is set to the primary color of your SharePoint page. |
 | Box Style | allows you to modify the style of the Counter Boxes. You can choose from Solid, Simple, Border, or Gradient. |
 | Shadow | allows you to add an outer shadow behind the Counter Boxes. |
 | Shape | allows you to choose the shape of the Counter Boxes. You can choose from Wide or Square. |
 | Responsive | when enabled, the Counter Boxes will fill the container width. |
C. Advanced Tab
The Advanced tab allows advanced styling customizations for the Counter Boxes. It has the following options:
ICON
 | Icon | allows you to choose an icon to showcase for all Counter Boxes. |
 | Icon color | allows you to modify the color of the icon. |
 | Icon Size | allows you to adjust the size of the icon. |
 | Icon Style | allows you to choose how the icon will look. You can choose from Normal, Circle, Square, Outline-Circle, or Outline-Square. |
 | Icon Location | allows you to customize the location of the icon. |
TEXT
 | Text Horizontal Alignment | allows you to choose the horizontal alignment of the text. |
 | Title Color | allows you to modify the color of the title. |
 | Title Text Size | allows you to adjust the size of the Title text. |
 | Title Location | allows you to modify the location of the Title Text. You can choose from Top or Below. |
 | Number Color | allows you to modify the color of the number text. |
 | Number Text Size | allows you to adjust the size of the number text. |
 | Symbol Color | allows you to modify the color of the symbol text. |
 | Symbol Text Size | allows you to adjust the size of the symbol text. |
ALL COUNTER BOXES BACKGROUND
 | Default Background Image | allows you to choose the background image for all Counter Boxes. |
 | Background Color | allows you to choose the background color of the Counter Boxes. |
 | Background Color Transparency | allows you to adjust the transparency of the background color. |
 | Background Icon | when enabled, the icon will be used as background. |
BORDER
 | Border Color | allows you to choose the color of the border. |
 | Border Size | allows you to adjust the size of the border. |
MISCELLANEOUS
 | Max Boxes in Row | allows you to set the maximum number of boxes to be shown in a row. |

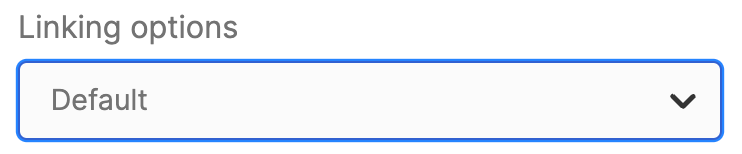

 | Linking Options | allows you to choose how a link will open. You can choose from Lightbox, New Window, or Dialog. NOTE: To learn more about Linking Options, check out Types of Linking Options. |
D. Custom CSS Tab
This tab allows you to use your own CSS, HTML, and Javascript code to customize the Counter Boxes Design Element.
NOTECheck out our support article on How to Insert Custom CSS into a ShortPoint Design Element (Basic Tutorial) to know more about Custom CSS.

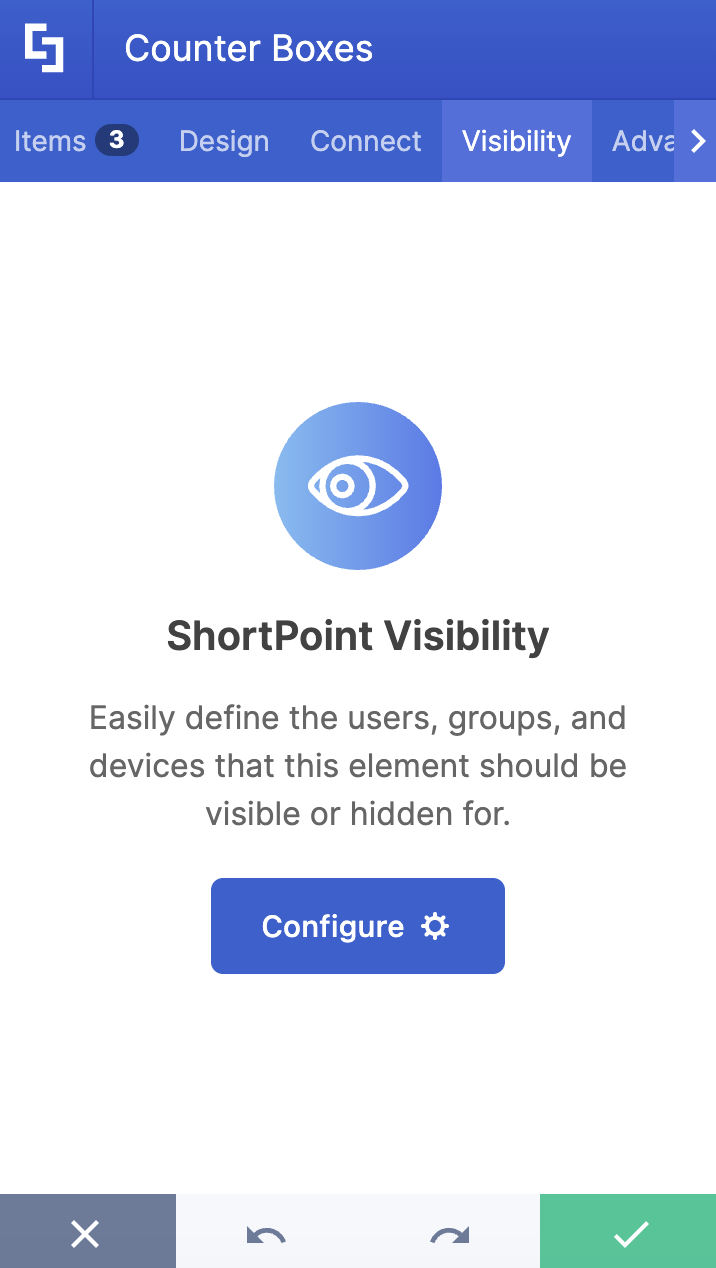

NOTEThe Connect and Visibility tabs are currently unavailable in Live Mode.
Congratulations! You can now make the most out of the Counter Boxes Design Element. Enjoy showcasing them on your pages.
